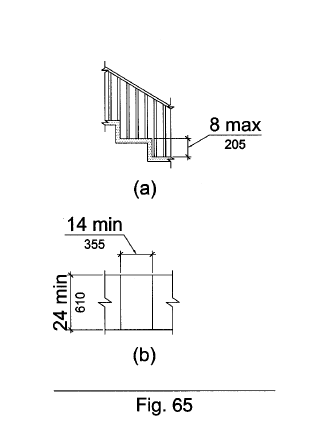

Figure 65(a) shows a transfer step 8 inches (205 mm) high maximum.  Figure 65(b) shows a transfer step that is 14 inches (355 mm) deep minimum and 24 inches (610 mm) long minimum.


Figure 65(a) shows a transfer step 8 inches (205 mm) high maximum. Figure 65(b) shows a transfer step that is 14 inches (355 mm) deep minimum and 24 inches (610 mm) long minimum.
