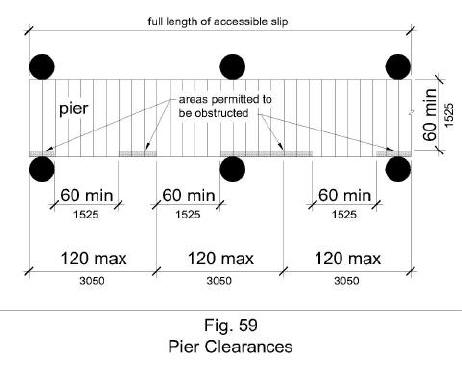

Figure 59 illustrates pier clearances in plan view.  Accessible boat slips are served by clear pier space 60 inches wide minimum and at least as long as the accessible boat slips.  Every 10 feet maximum of linear pier edge serving the accessible boat slips contains at least one continuous clear opening 60 inches minimum wide.


Figure 59 illustrates pier clearances in plan view. Accessible boat slips are served by clear pier space 60 inches wide minimum and at least as long as the accessible boat slips. Every 10 feet maximum of linear pier edge serving the accessible boat slips contains at least one continuous clear opening 60 inches minimum wide.
