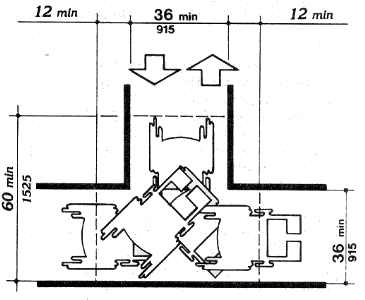

Figure 3b Wheelchair Turning Space T-Shaped Space for 180 Degree Turns
Figure 3b
Wheelchair Turning Space
T-Shaped Space for 180 Degree Turns

The T-shape space is 36 inches (915 mm) wide at the top and stem within a 60 inch by 60 inch (1525 mm by 1525 mm) square.
