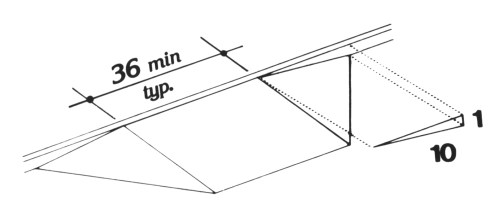

Figure 13 - Built-Up Curb Ramp (description below)
Figure 13
Built-Up Curb Ramp

A built-up curb ramp extends outward from the curb and slopes to the ground surface. The sides must also be tapered from the ramp surface to the ground, with a maximum slope of 1:10, so that there are no drop-offs along the edges.
