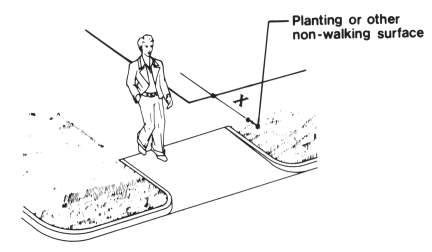

Figure 12(b) - Sides of Curb Ramps - Returned Curb (description below)
Figure 12(b)
Sides of Curb Ramps
Returned Curb

Where the curb ramp is completely contained within a planting strip or other non-walking surface, so that pedestrians would not normally cross the sides, the curb ramp sides can have steep sides including vertical returned curbs.
