Access Aisle at Passenger Loading Zones (description below)

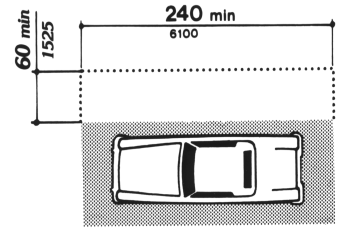

Figure 10
Access Aisle at Passenger Loading Zones

An access aisle is required at a passenger loading zone which is 240 inches (6100 mm) minimum, measured parallel to the vehicle pull-up area, and 60 inches (1525 mm) minimum, measured perpendicular to the vehicle area. This aisle must be clear of obstructions and at the same level as the vehicle area.
